Difference between NP2 and NP3 Hume Pipes


Difference between NP2 and NP3 Class RCC Hume Pipes

Non-Pressure RCC Hume pipes of class 2 are known as light-duty Hume pipes used for sewers, irrigation, and light traffic culverts. their thickness varies from 25 to 110 mm for 8cm dia and 2.2m dia respectively. for NP3 (medium duty) the thickness varies from 25 to 215mm
for 8cm dia and 2.6m dia respectively. there is an NP4 class also. all the remaining being same except the thickness. IS:458-1988 deals with the requirements.

We are Manufacturing NP2, Np3 Hume Pipes From the year 2012. We set up New unit of Shri Balaji spun pipes, with 13 production lines Of Np2, Np3, and Np4 Pipes and 12 types Of Covers to giving you the very best product with a focus on dependability, service, and responsibility. Our passion for Providing better Drainage Products like Drain Covers, Manholes, and Sewer Covers gave us the boost to serve customers all over the Indian

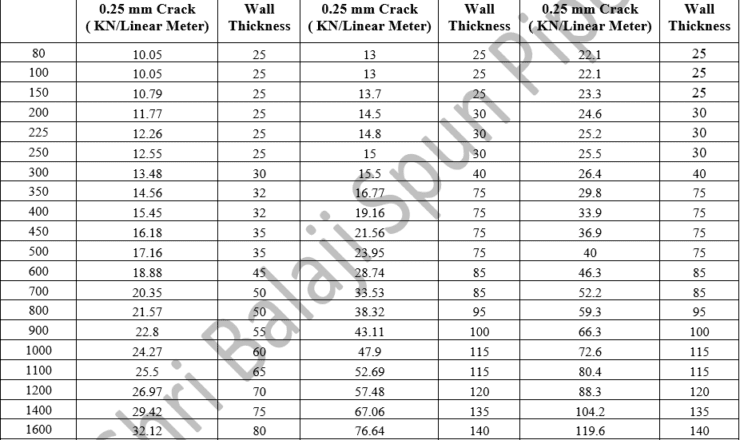

Load Bearing Capacity and Barrel wall thickness of Np2, Np3, and Np4 as Below:
