Sewer Covers

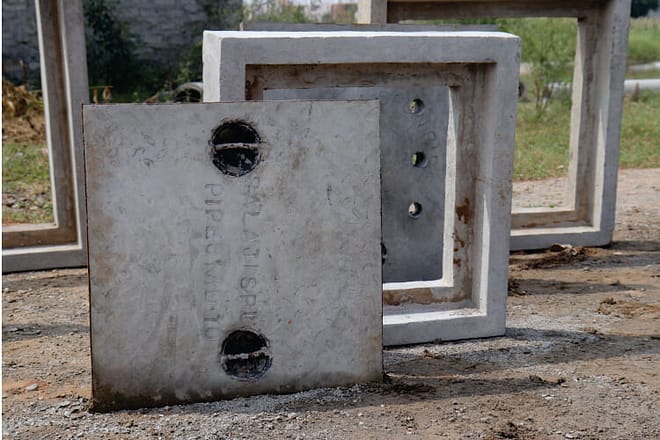

SFRC Manhole Covers

With vast experience and depth understanding of the Rcc Product We have specialized our self in manufacturing Rcc Manhole Covers & SFRC Covers too . We offer wide Range of Covers to chose from. We Provide high Load Bearable capacity & Durability in Product that provided Long life cycle . With Supreme quality of raw material and Specialized machine We are completing the Requirement of Industries , Govt. Public works .

Monday – Saturday, 24 hours

Email: info@balajispunpipe.com

Phone : +91-9992906006

Product Details: 260 -260 MM

Manhole Covers Size260 -260 MM
Cover thickness35 MM
Frame Height55 MM
Complete set Weight17 MM
FRAME OUTER DIA410 -410 mm
COVER OUTER DIA300 -300 mm

These Type of manhole are also used In Catch basin , Gully traps and garden area and pit chamber s, parking Areas , low Load area.

Product Details: 300 -300 MM

Manhole Covers Size300 -300 MM
Cover thickness50 MM
Frame Height75 MM
Complete set Weight47 kg
FRAME OUTER DIA510 -510 mm
COVER OUTER DIA410 -410 mm

These Type of manhole are also used In Catch basin , Gully traps and garden area and pit chamber s, parking Areas , low Load area.

Product Details: 450 -450 MM

Manhole Covers Size450 -450 MM
Cover thickness70 MM
Frame Height120 MM
Complete set Weight85 kg
FRAME OUTER DIA670 -670 mm
COVER OUTER DIA560 -560 mm

Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 450 -500 MM

Manhole Covers Size450 -500 MM
Cover thickness70 MM
Frame Height120 MM
Complete set Weight88 kg
FRAME OUTER DIA670 -690 mm
COVER OUTER DIA570 -560 mm

– Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details:450 -600 MM

Manhole Covers Size450 -600 MM
Cover thickness70 MM
Frame Height120 MM
Complete set Weight100 kg
FRAME OUTER DIA670 – 710 mm
COVER OUTER DIA560 – 700 MM

Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 560 MM MD

Manhole Covers Size560 MM MD
Cover thickness70 MM
Frame Height120 MM
Complete set Weight110 kg
FRAME OUTER DIA770 MM
COVER OUTER DIA660 MM

Medium Duty MD10 :- Suitable for use within residential and institutional complexes/areas with pedestrian but occasional Light Motor Vehicle traffic. These covers are also used for ‘Inspection Chambers’

Product Details: 560 MM HD20

Manhole Covers Size560 MM HD20
Cover thickness90 MM
Frame Height175 MM
Complete set Weight190 kg
FRAME OUTER DIA880 mm
COVER OUTER DIA710 mm

560 MM Heavy Duty HD20Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 15 to 25 tonnes , like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.

Product Details: 560 MM EHD35

Manhole Covers Size560 MM EHD35
Cover thickness100 MM
Frame Height175 MM
Complete set Weight220 kg
FRAME OUTER DIA880 mm
COVER OUTER DIA710 mm

Extra Heavy Duty EHD35 Suitable for use on carriageways in commercial; industrial/port areas/near warehouses/go downs where frequent loading and unloading of trucks/ trailers

Product Details: 600 -600 MM MD

Manhole Covers Size600 -600 MM MD
Cover thickness70 MM
Frame Height120 MM
Complete set Weight130 kg
FRAME OUTER DIA825 -825 mm
COVER OUTER DIA710-710 MM

600 -600 md :- Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 600 -600 MM HD20

Manhole Covers Size600 – 600 MM HD20
Cover thickness70 MM
Frame Height120 MM
Complete set Weight148 kg
FRAME OUTER DIA825 – 825 mm
COVER OUTER DIA710 – 710 mm

600 -600 Hd20 :Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 10 to 15 tonnes, like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.

Product Details: 600 -600 MM EHD35

Manhole Covers Size600 -600 MM EHD35
Cover thickness90 MM
Frame Height140 MM
Complete set Weight170 kg
FRAME OUTER DIA825 – 825 mm
COVER OUTER DIA710 – 710 mm

600 -600 EHd35.Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 20 to 25 tonnes, like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.

Product Details: 800-900 MM

Manhole Covers Size800-900 MM
Cover thickness70 MM
Frame Height120 MM
Complete set Weight230 kg
FRAME OUTER DIA1080-1150 MM
COVER OUTER DIA450-1000 MM

Extra Heavy Duty EHD35Suitable for use on carriageways in commercial; industrial/port areas/near warehouses/go downs where frequent loading and unloading of trucks/ trailers
