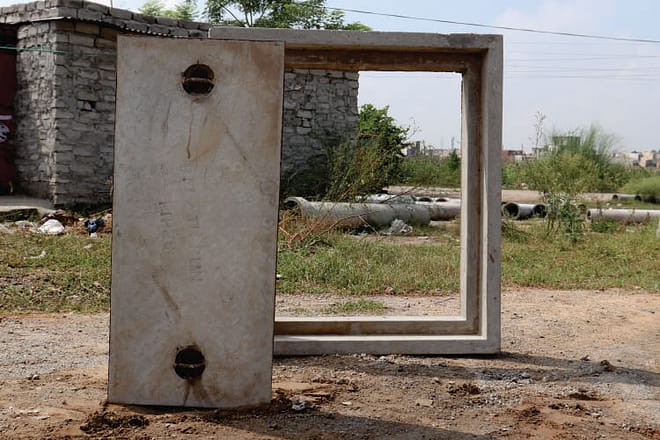

RCC Manhole Covers

With vast experience and depth understanding of the Rcc Product We have specialized our self in manufacturing Rcc Manhole Covers & SFRC Covers too . We offer wide Range of Covers to chose from. We Provide high Load Bearable capacity & Durability in Product that provided Long life cycle . With Supreme quality of raw material and Specialized machine We are completing the Requirement of Industries , Govt. Public works .

Monday – Saturday, 24 hours

Email: info@balajispunpipe.com

Phone : +91-9992906006

Product Details: 800-900 MM

Manhole Covers Size 800-900 MM
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 230 kg
FRAME OUTER DIA 1080-1150 MM
COVER OUTER DIA 450-1000 MM

Extra Heavy Duty EHD35Suitable for use on carriageways in commercial; industrial/port areas/near warehouses/go downs where frequent loading and unloading of trucks/ trailers

Product Details: 260 -260 MM

Manhole Covers Size 260 -260 MM
Cover thickness 35 MM
Frame Height 55 MM
Complete set Weight 17 MM
FRAME OUTER DIA 410 -410 mm
COVER OUTER DIA 300 -300 mm

These Type of manhole are also used In Catch basin , Gully traps and garden area and pit chamber s, parking Areas , low Load area.

Product Details: 300 -300 MM

Manhole Covers Size 300 -300 MM
Cover thickness 50 MM
Frame Height 75 MM
Complete set Weight 47 kg
FRAME OUTER DIA 510 -510 mm
COVER OUTER DIA 410 -410 mm

These Type of manhole are also used In Catch basin , Gully traps and garden area and pit chamber s, parking Areas , low Load area.

Product Details: 450 -450 MM

Manhole Covers Size 450 -450 MM
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 85 kg
FRAME OUTER DIA 670 -670 mm
COVER OUTER DIA 560 -560 mm

Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 450 -500 MM

Manhole Covers Size 450 -500 MM
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 88 kg
FRAME OUTER DIA 670 -690 mm
COVER OUTER DIA 570 -560 mm

– Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details:450 -600 MM

Manhole Covers Size 450 -600 MM
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 100 kg
FRAME OUTER DIA 670 – 710 mm
COVER OUTER DIA 560 – 700 MM

Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 560 MM MD

Manhole Covers Size 560 MM MD
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 110 kg
FRAME OUTER DIA 770 MM
COVER OUTER DIA 660 MM

Medium Duty MD10 :- Suitable for use within residential and institutional complexes/areas with pedestrian but occasional Light Motor Vehicle traffic. These covers are also used for ‘Inspection Chambers’

Product Details: 560 MM HD20

Manhole Covers Size 560 MM HD20
Cover thickness 90 MM
Frame Height 175 MM
Complete set Weight 190 kg
FRAME OUTER DIA 880 mm
COVER OUTER DIA 710 mm

560 MM Heavy Duty HD20Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 15 to 25 tonnes , like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.

Product Details: 560 MM EHD35

Manhole Covers Size 560 MM EHD35
Cover thickness 100 MM
Frame Height 175 MM
Complete set Weight 220 kg
FRAME OUTER DIA 880 mm
COVER OUTER DIA 710 mm

Extra Heavy Duty EHD35 Suitable for use on carriageways in commercial; industrial/port areas/near warehouses/go downs where frequent loading and unloading of trucks/ trailers

Product Details: 600 -600 MM MD

Manhole Covers Size 600 -600 MM MD
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 130 kg
FRAME OUTER DIA 825 -825 mm
COVER OUTER DIA 710-710 MM

600 -600 md Suitable for use in service lanes/roads, on pavements for use under medium-duty vehicular traffic including for car parking areas , Catch basin , Gully traps and garden area , parking Areas , low Load area.

Product Details: 600 -600 MM HD20

Manhole Covers Size 600 – 600 MM HD20
Cover thickness 70 MM
Frame Height 120 MM
Complete set Weight 148 kg
FRAME OUTER DIA 825 – 825 mm
COVER OUTER DIA 710 – 710 mm

600 -600 Hd20 Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 10 to 15 tonnes, like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.

Product Details: 600 -600 MM EHD35

Manhole Covers Size 600 -600 MM EHD35
Cover thickness 90 MM
Frame Height 140 MM
Complete set Weight 170 kg
FRAME OUTER DIA 825 – 825 mm
COVER OUTER DIA 710 – 710 mm

600 -600 EHd35.Suitable for use in institutional/commercial areas/carriageways/city trunk roads/bus terminals, with heavy-duty vehicular traffic of wheel loads between 20 to 25 tonnes, like buses, trucks and parking areas and where the manhole chambers are located in-between the pavement and the middle of the road.
